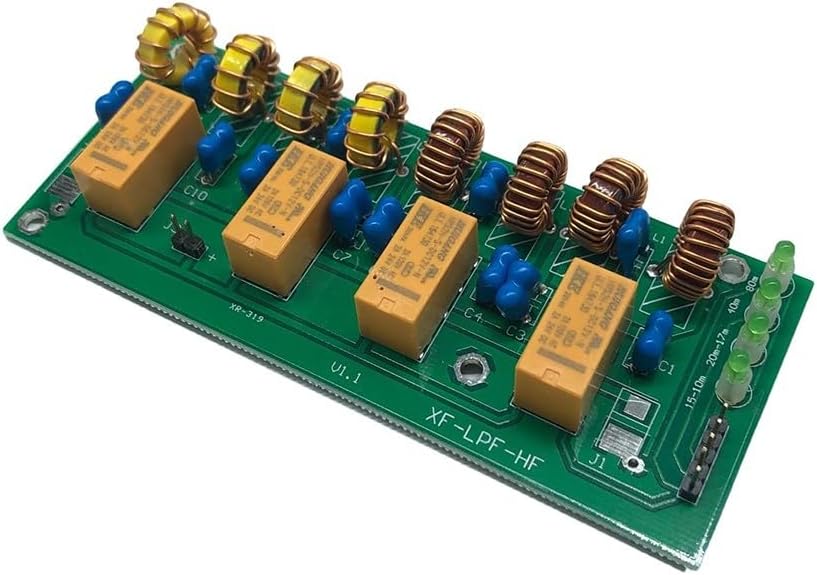

HF Low Pass Filter Kit 100W For Shortwave Radios, 3 5MHz To 30MHz Frequency With Enhanced Thermal Management

Function:XF-LPF-HF filter kit Short wave low pass filterFeatures:The PCB adopts 1.6mm thick double-sided sheet, 2.0oz copper thickness, and full tin spraying process to for ensure good passing performance of large and small currentsLarge heat dissipation area can better maintain long-termLarge heat dissipation area, better improve service lifeSpecification:Working frequency: 3.5Mhz-30MhzPower 100WVoltage: 12VManual switching band: 80m, 40m, 20-17m, 15-10mPackage Included：Filter*1

• 【Wide Frequency Range】The HF Low Pass Filter is designed for shortwave radios and has a working frequency range of 5MHz to 30MHz, allowing for versatile use in various applications.
• 【 Power Capacity】With a power rating of 100W, this LPF can handle high power transmissions without sacrificing performance or .
• 【Efficient Heat Dissipation】The PCB design incorporates a large heat dissipation area, optimal cooling and prolonging the lifespan of the filter.
• 【Easy Band Switching】This filter features manual band switching, allowing users to easily select between 80m, 40m, 20-17m, and 15-10m bands depending on their needs.
• 【 Construction】Constructed with 6mm thick double-sided sheet and 2.0oz copper thickness, this filter ensures excellent conductivity and durability for long-term use.
