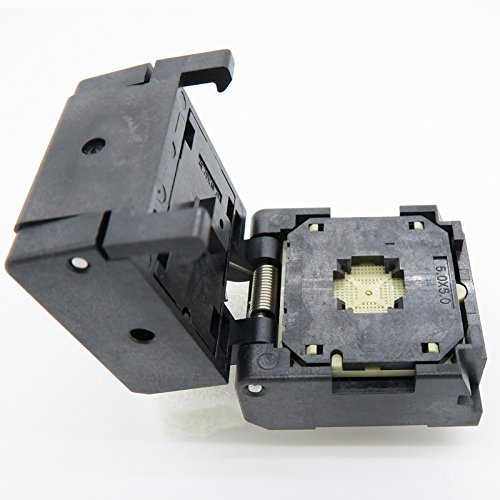

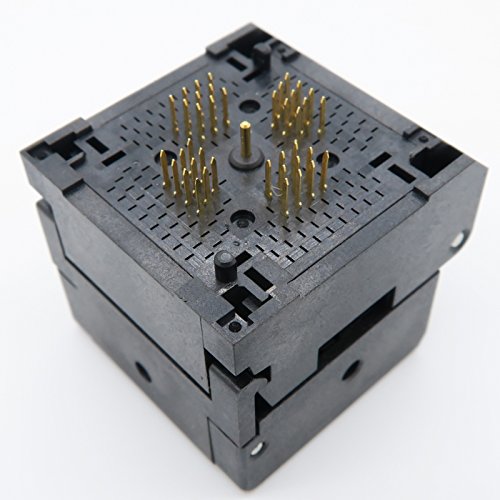

QFN40(5x5)-0.4 Burn in Socket QFN40 MLF40 WLCSP40 Package Testing Adapter, 0.4mm Pitch IC Size 5x5mm NP506-040-007-SC-G QFN IC MCU Programming Socket Burn-in(Clamshell, 0.4mm)
Product details
| Management number | 221449963 | Release Date | 2026/05/03 | List Price | US$25.08 | Model Number | 221449963 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
Structure: Clamshell Version.Socket Body: PEI. Contacts: Beryllium Copper Alloy. Contact Plating: Gold over nickel. Operation Force: Max 2.0kg. Contact Resistance: Max 50 mohm, Insulation Resistance: 1,000 mohm min. at DC 500V. Operation Temperature:-40 to +150 Celsius degree, Operation Life:15,000 cycles(Mechanical). Use method: Assemble to be an adapter;Assemble onto a test board. Note: The bottom view of pins are only FYR,if you need detail drawing for Pins info/footprints,please contact us by ALLSOCKET Email:amanda*at*allsocket(dot) c+o+m.
- Supported Package: QFN40, MLF40, WLCSP40
- Socket P/N: NP506-040-007-SC-G, QFN40(5x5)-0.4-SCL
- Application IC: 0.4mm Pitch, IC body size: 5x5 mm;Structure Type: Clamshell version(fit for Manual testing)
- QFN IC MCU Burn-in Socket Programming Adapter
- Note: The bottom view of pins are only FYR,if you need detail drawing for Pins info/footprints,please contact us by ALLSOCKET Email.
| Brand Name | ALLSOCKET |
|---|---|
| Part Number | QFN40(5x5)-0.4-SCL |
| Manufacturer | ALLSOCKET |
| Model Number | NP506-040-007-SC-G |
| Contact Material | Beryllium Copper |
| Contact Plating Material | Gold |
