Tool Part for General Analysis General T6- Century Spectrophotometer Deuterium Lamp Tungsten Lamp with L6312-53 - (Color: Deuterium Lamp)

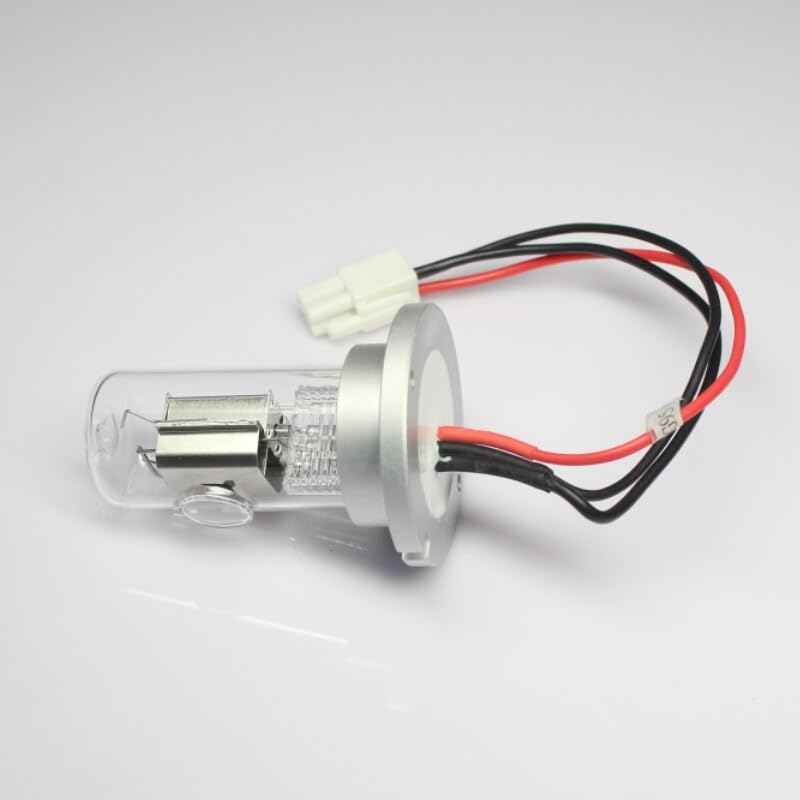

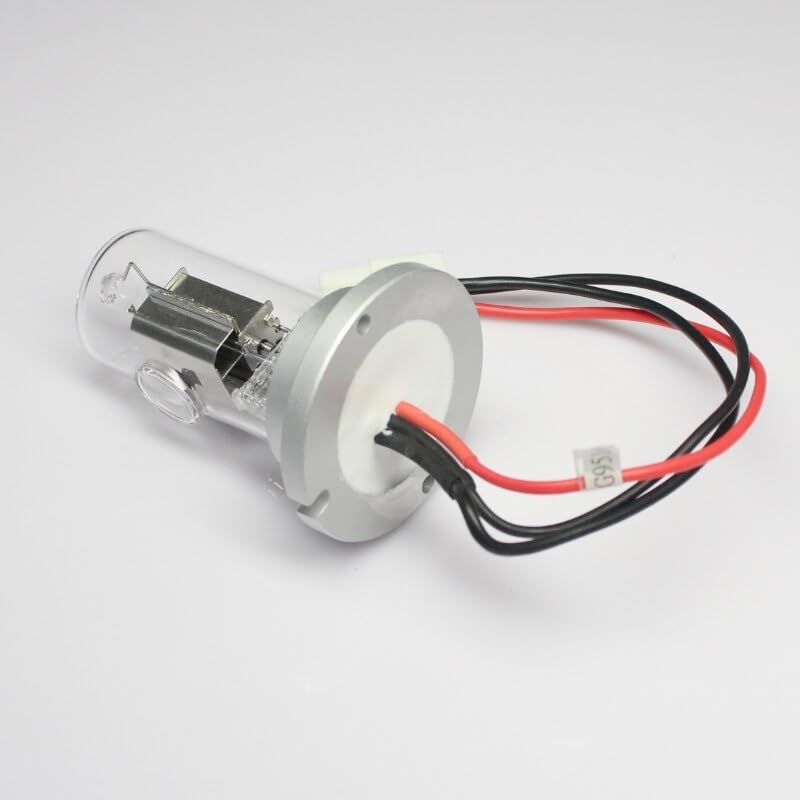

Item Description:Trade name: L6312-53 deuterium lamp.Lamp form: aluminum alloy flange.Product description: Deuterium lamp is a kind of light source of arc discharge type in discharge lamp. When it is working, it can radiate 160nm 400nm continuously distributed ultraviolet spectrum from the light window. Therefore, it is the most ideal UV light source for UV spectrophotometer and liquid chromatograph. Preheat voltage: 10V.Preheat current: 0.8A.Trigger voltage: 350 min DC(V).Lamp current: 300mA.Light center height: 42mm. Flange diameter: 50mmInstructions for use: 1. The lamp has three leads, two of the same color are the filament, and the other is the anode.2. After installation and debing, it is essary to the light window with cotton to avoid pollution and affect the UV transmittance.3. In order to ensure that the lamp has stability, the stability of the power supply is required to be not less than 0.05%.4. When the lamp is working, do not see the light spot with naked eyes, so as not to hurt the eyes.5. The lamp can be interchanged with the lamps of the same number in Japan, Germany and Britain.Application: General Analysis T6- Century, T6- Spectrophotometer Can replace Japan's Deuterium Lamp TYPE L6312-53Item Specification:

• Model number just for reference only, Please check item appearance and your original part carefuly.
• We will not responsible if you do not compare the part with your original part before buying.
